ZD-6(3P)

ZD-6 (3P) LED down lamp

LED lamp is a supporting product of drum washing machine.It is used to lighting when put clothes into the washing machine.

SPECIFICATIONS

Model

ZD-6(3P)

Power

0.3W

Voltage

DC5.0V

Drive method

Constant current drive

Color temperature / wavelength

3000/4000/5000/6000K

blue light 460-470nm, green light 520-530nm, red light 620-640nm

Luminous flux

25-36LM  4-8LM  15-25LM  5-10LM

Color rendering index

Ra≥80

Material

PC

IP level

IP65

Connector

2P/3P





Working Environment



◎Working temperature: -30℃～45℃

◎Humidity: 5%～95%RH

◎Storage temperature: -30℃～50℃

◎No gas, steam, chemical deposits, dust, dirt and explosive corrosive media that seriously affect electrical insulation in the installation site.

◎No severe vibration or bumps in the installation site.

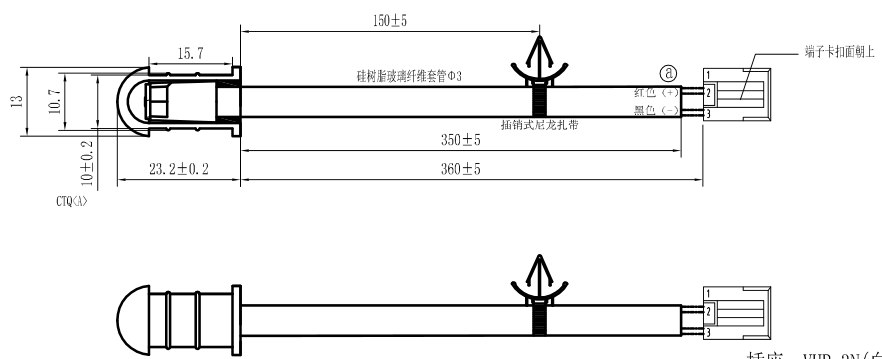

  Dimension
